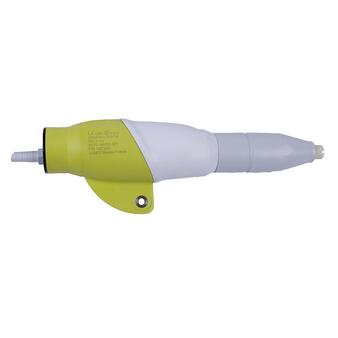

AUTO MACH-JET噴槍一般工業應用中的粉末噴涂而設計。其將高性能、清潔簡單、易于使用等特點，可以提供快的生產力，并且能快地?fù)Q色。
高傳遞效率
維護簡單
適應各種工業約束
安全性高
性能
可以輕松實現電壓和電流的精確設置
在復雜形狀工件上可實現穿透性
良好環繞效果
生產力
多種噴嘴可選，可實現應用
工件批量管理輔助：無需PLC即可預存9種不同的設置
快速斷開軟管（選配）
可持續性
符合ATEX和FM認證
耐沖擊性強
噴嘴耐磨蝕性強
技術參數
| 描述 | 值 | 單位 |
|---|---|---|
| 大涂料輸出 | 240 (8.12) | cc/min (oz/min) |
| 大空氣壓力 | 7 (102) | bar (psi) |
| 空氣損耗 | 6 (3.53) | m3/h (cfm) |
設備
| Designation | Cable length | Part number | |||
|---|---|---|---|---|---|
| AutoMachJet - cable length18 m | 18 m (60 ft) | 1527340 | |||
| AutoMachJet - cable length 30 m | 30 m (98 ft) | 910000100 |
附件
| Designation | Part number | ||||
|---|---|---|---|---|---|
| Fixing nut 50/60 mm | 1204441 | ||||
| Support metal arm 30 mm | 1527291 | ||||
| Fixing nut 50/30 mm | 749805 | ||||
| Front rack face for 1x CRN457 | 1526286 | ||||
| Cable for trigger control in remote control (5 m) | 910000092 | ||||
| Front rack face for 2x CRN457 | 1526284 | ||||
| Elecric kit 24 V (in a box) | 910000129 | ||||
| Electric kit 24 V (for upgrade PVV booth) | 910008195 |
套裝
| Designation | Part number | ||||
|---|---|---|---|---|---|
| AutoMachJet - Integrator kit 18 m (CRN457+nut 50/30 mm+hose+pump CS130) | 1527386 | ||||
| Package AutoMachJet x2 (ref. 1527386) + 1 front for CRN457 x2 | 910001001 | ||||
| AutoMachJet - Integrator kit 18 m (CRN457+nut 50/30 mm+hose+pressure pot CSV230) | 910021123 |
組成部件
| Designation | Part number | ||||
|---|---|---|---|---|---|
| CRN457 control module | 1523297 | ||||
| Round spray nozzle support | 1525493SAV | ||||
| Round spray deflector - white - 12 mm | 1411500 | ||||
| Round spray deflector - white - 16 mm | 1409259 | ||||
| Round spray deflector - white - 20 mm | 1409260 | ||||
| Round spray deflector - white - 25 mm | 1411993 | ||||
| 延長噴嘴 150 mm -圓形噴涂16mm | 910006971 | ||||
| 延長噴嘴 300 mm - 圓形噴涂16mm | 910006970 | ||||
| 圓形噴涂導流板 -灰色-16mm | 900008026 | ||||
| 圓形噴涂導流板-藍色-20mm | 900008027 | ||||
| 平噴噴嘴 | 1525492SAV | ||||
| Deflector tip narrow - grey | 1311409 | ||||
| Deflector tip narrow - yellow (supplied as standard) | 1315957 | ||||
| Deflector tip - medium - white | 1313519 | ||||
| Deflector tip - wide - red | 1311793 | ||||
| 延長噴嘴 150 mm- 標準平噴 | 910004126 | ||||
| 延長噴嘴 300 mm- 標準平噴 | 910004125 | ||||
| Powder hose dia. 11x15 mm (50 m lot) | U1FGBA092# | ||||
| 粉管直徑 12x17 mm (50 m lot) | U1FGBA034# | ||||
| 全套粉管連接器 | 1527393 | ||||
| 粉末連接器 (10 unit lot) | 1411501# |
